Raymarine Evolution Autopilot EV150 – Hydraulic

Evolution autopilots perceive their environment and instantly calculate and evolve steering commands to maximize performance. Featuring a 9-axis sensor monitoring of pitch, roll, yaw and heading. The result is precise and confident course keeping, regardless of vessel speed or sea conditions. Evolution autopilots steer is so accurate they will save you fuel and get to your destination faster.

Easy to install with freedom from the restrictions of conventional heading sensors. EV sensors core can be installed above or below deck, upside down or off the vessels centreline and is a simple Plug and Play connections with no lengthy calibration procedures to perform.

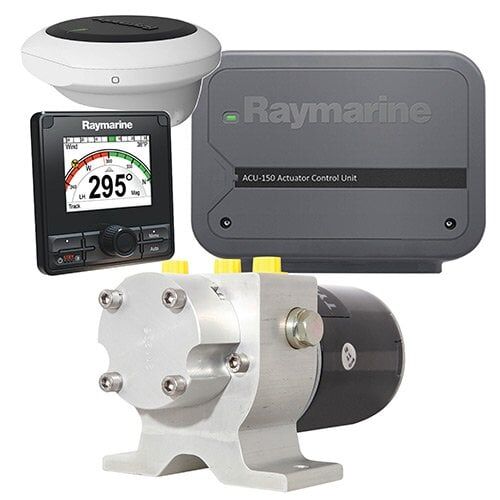

The Evolution EV150 Hydraulic Autopilot System Pack is a complete kit that is ready to install on small to medium sized vessels with hydraulic steering ram capacity between 4.9 cu. in.( 80cc) and 14.0 cu in (230cc). The Type 1 Hydraulic Pump is intended to operate the boats steering mechanism as part of the autopilot system. The hydraulic pump contains a precision gear pump and a check valve driven by a servo motor.
