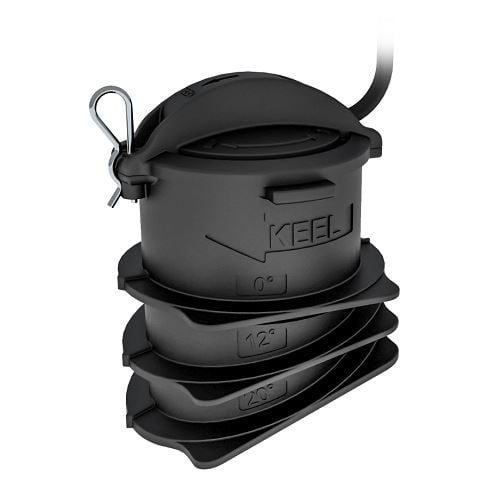

Raymarine CPT-S In-Hull

The CPT-S In-hull transducer provides a simple-to-install depth-only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications and connection to Raymarine Element and Axiom chartplotters. The CPT-S In-hull transducer transmits sonar signals through the boat’s hull meaning no drilling through the hull is required, simplifying installation while providing reliable high-speed depth recording.

Supports single High CHIRP sonar with a 25° conical beam with up to 600 ft (183 m) depth range.

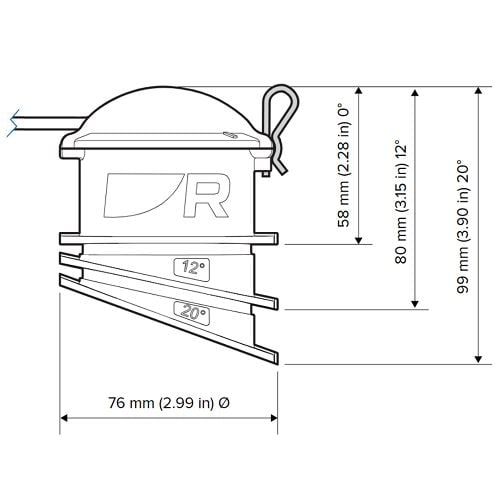

An innovative transducer tube housing design allows to mount in hulls ranging from 0 to 25 degrees deadrise and includes 7.5 meter cable

Depending on you the model of chartplotter, an adaptor cable may be required.
