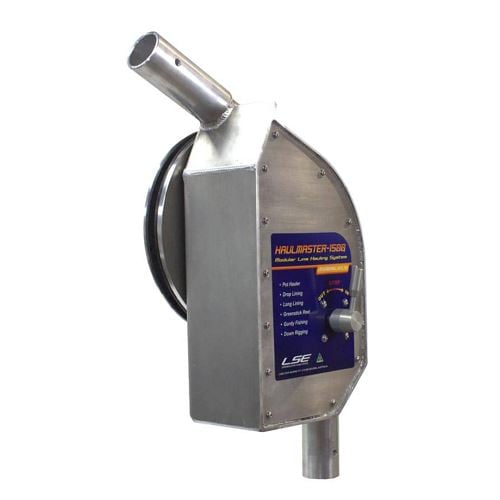

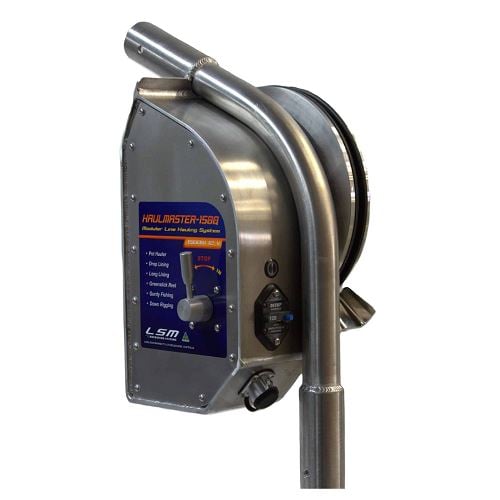

Lone Star Marine Haulmaster 1500-PH

Manufactured like no other line hauler on the market today and has the finish, durability, and functionality Lonestar Marine is known for.

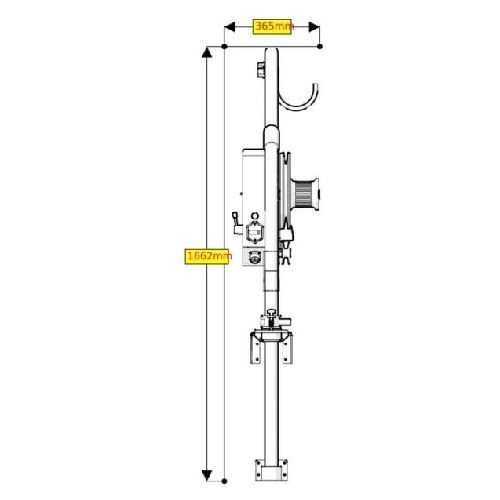

A modular line hauling system suitable for recreational and commercial applications of hauling pots, drop lines, longlines, downrigging and more! Heavily built from marine grade aluminium using 50mm OD aluminium with a 6mm wall thickness on frame and boom.

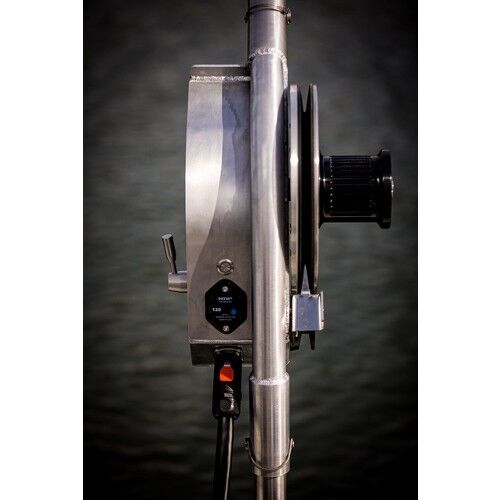

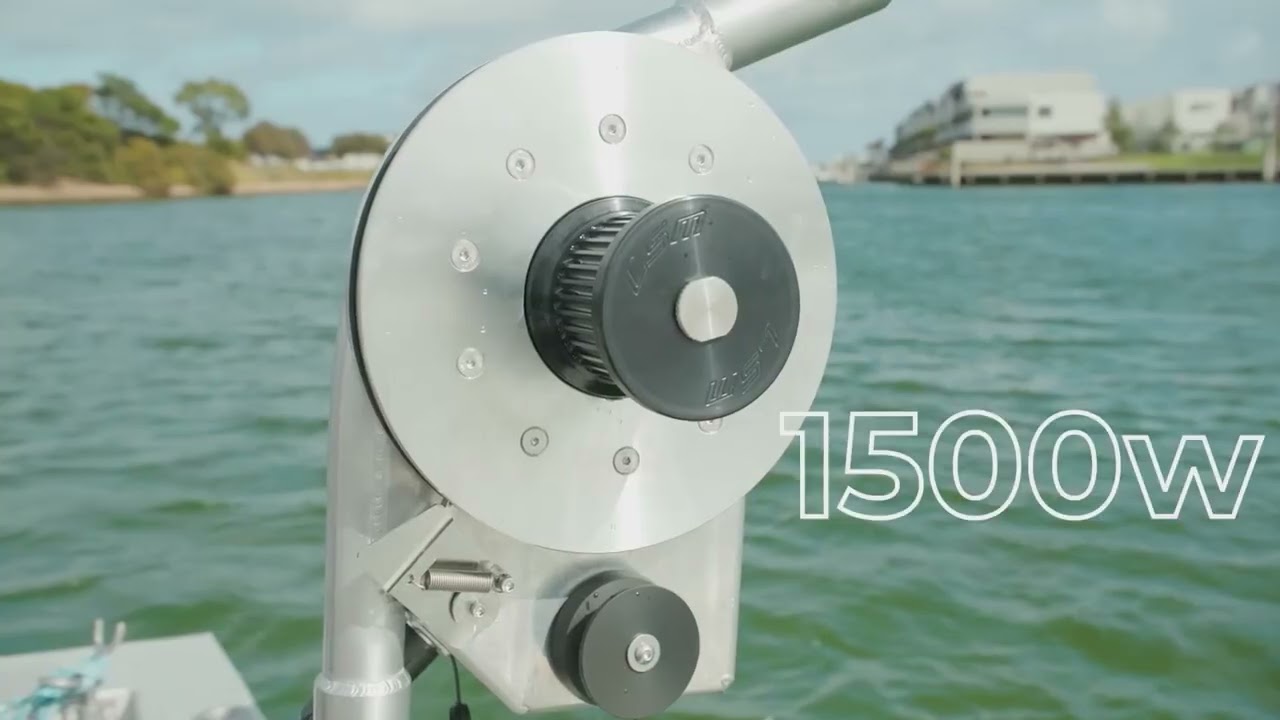

A massive fully sealed 1500w drive with a 98mm gearset ensures maximum torque for the longest life. The HAULMASTER includes a removable power lead with an IP67 waterproof plug with 16ft twin sheath cable rated to 120 amp.

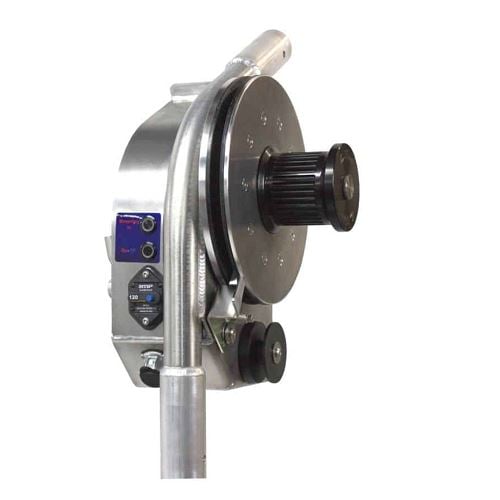

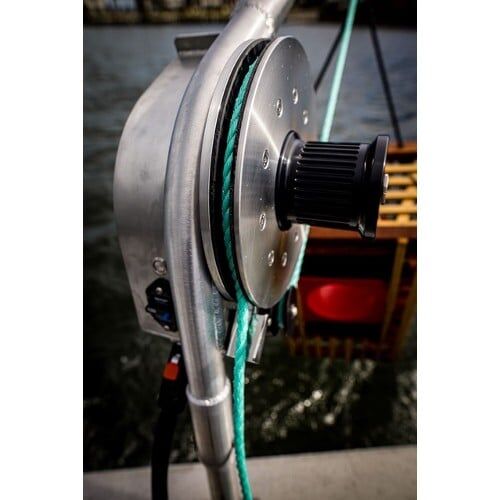

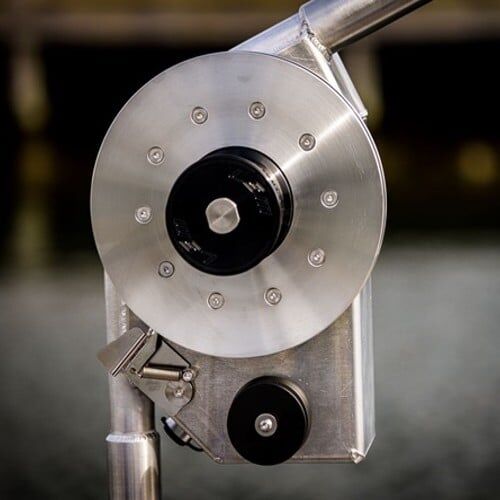

A 300mm large power sheave grips rope from 6mm-14mm with no slippage for hands free hauling and Self-Coiling rope guide. A suggested safe 350lb max pull & 150lb recommended working load with upto 50m per minute line speed for fast, easy retrieval of pots or lines.

Also includes a 700lb snatch load Capstan for slower retrieval, extra heavy loads, or if slippage is required to prevent boat overturn.

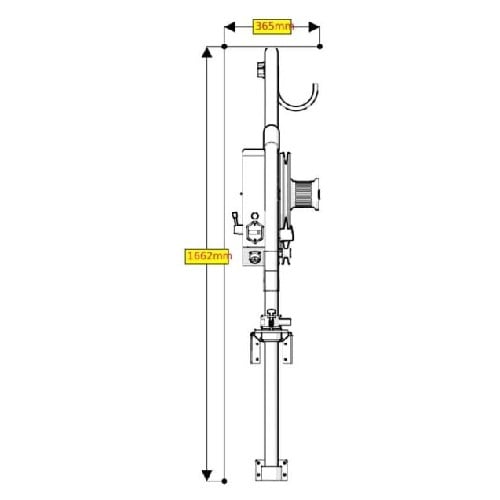

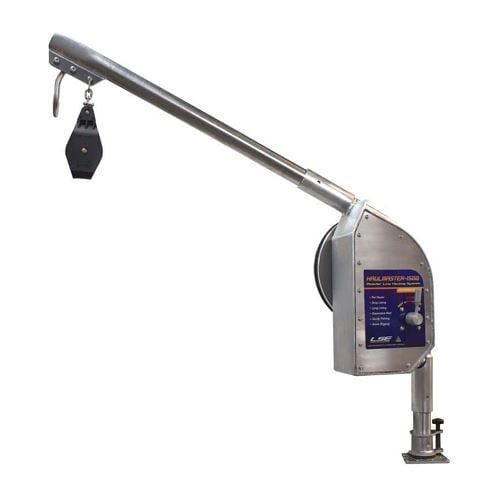

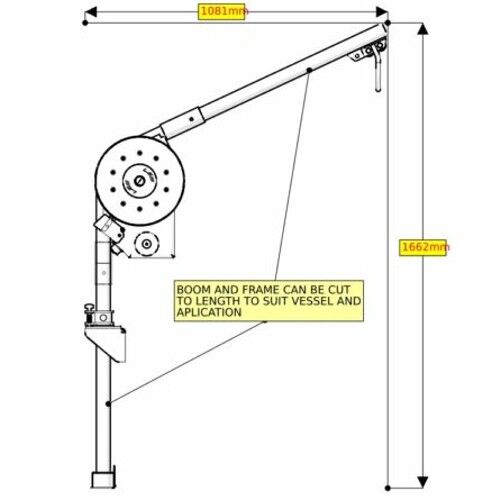

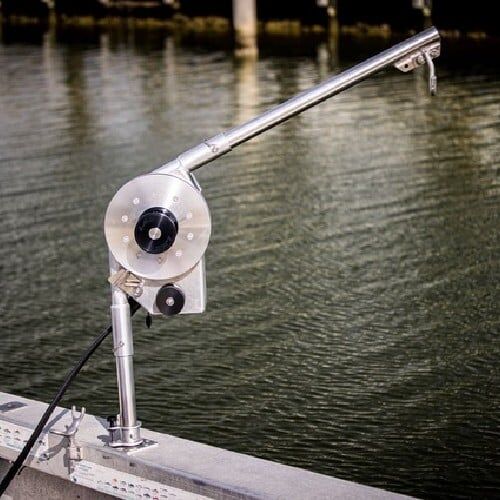

Through gunnel or inside gunnel mounting options with Lift & Locking pins for easy positioning or swinging pots into your boat with no need to tie off when using the 300mm large sheave. A simple one bolt changeover to fit Mono Spool or Braid spool (Not Included). The frame post & boom can be cut to suit your vessel & purpose with mounting fittings, frame, boom, open Foble sheave, pot hook, and lead are included to suit a standard installation.

Proudly Manufactured in Australia with no corners cut and a 5 Year Warranty.
