Eye Bolt & Collar
$5.90 – $17.90
[tamar_zippay_widget_tagline]

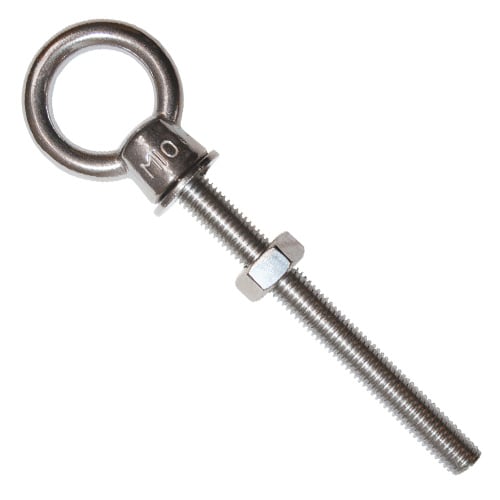

High quality eyebolt made from 316 grade stainless steel with a heavy duty cast eye.
For use as a lifting eye bolt, as a bow eye or other applications.Metric thread. Supplied with stainless washer and hex nut. S.W.L (suggested working load) is approx 25% of ultimate breaking load
4 sizes available.

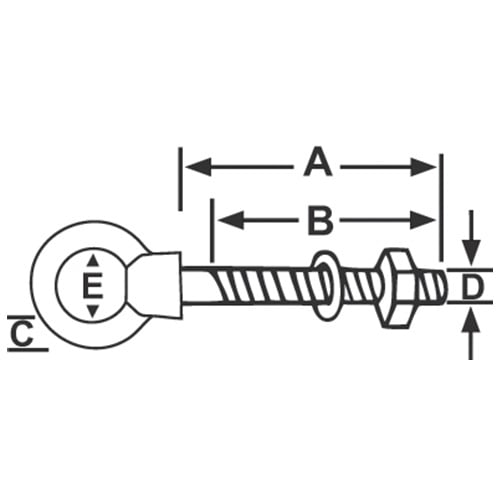

Dimensions in mm below.
6mm / A:60 / B:54 / C:5 / E:16 / S.W.L:275 Kg
8mm / A:80 / B:70 / C:6 / E:19 / S.W.L:425 Kg
10mm / A:100 / B:88 / C:8 / E:24 / S.W.L:650 Kg
12mm / A:120 / B:105 / C:10 / E:30 / S.W.L:850 Kg
Eye Bolt & Collar variations
| Image | Attributes | SKU | Price | Stock | Buy |
|---|---|---|---|---|---|
|
| EBSSC6-60 | $5.90 | In stock | |
|
| EBSSC8-80 | $7.90 | In stock | |
|
| EBSSC10-100 | $9.90 | In stock | |
|
| EBSSC12-120 | $17.90 | In stock |
